spharpy.spherical

Spherical harmonics and Ambisonics functions. Please refer to the Spherical Harmonic Definitions page for background information on spherical harmonics.

Functions:

acn_to_nm(acn)	Calculate the order n and degree m from the linear coefficient index.
aperture_vibrating_spherical_cap(n_max, ...)	Aperture function for a vibrating spherical cap.
change_channel_convention(data, current, ...)	Change the channel convention of spherical harmonics coefficients or basis functions.
fuma_to_nm(fuma)	Calculate the spherical harmonic order n and degree m for a linear coefficient index, according to the FuMa (Furse-Malham) Channel Ordering Convention.
modal_strength(n_max, kr[, arraytype])	Modal strength function for microphone arrays.
n3d_to_maxn(acn)	Calculate the scaling factor which converts from N3D (normalized 3D) normalization to max N normalization.
n3d_to_sn3d_norm(n)	Calculate the scaling factor which converts from N3D (normalized 3D) normalization to SN3D (Schmidt semi-normalized 3D) normalization.
nm_to_acn(n, m)	Calculate the linear index coefficient for a order n and degree m.
nm_to_fuma(n, m)	Calculate the FuMa channel index for a given spherical harmonic order n and degree m, according to the FuMa (Furse-Malham) Channel Ordering Convention.
radiation_from_sphere(n_max, rad_sphere, k, ...)	Radiation function in SH for a vibrating spherical cap.
renormalize(data, channel_convention, ...)	Renormalize spherical harmonics coefficients or basis functions.
sid(n_max)	Calculates the SID indices up to spherical harmonic order n_max.
sid_to_acn(n_max)	Convert from SID channel indexing to ACN indeces.
sph_identity_matrix(n_max[, matrix_type])	Calculate a spherical harmonic identity matrix.
spherical_harmonic_basis(n_max, coordinates)	Calculates the complex valued spherical harmonic basis matrix.
spherical_harmonic_basis_gradient(n_max, ...)	Calculates the unit sphere gradients of the complex spherical harmonics.
spherical_harmonic_basis_gradient_real(...)	Calculates the unit sphere gradients of the real valued spherical harmonics.
spherical_harmonic_basis_real(n_max, coordinates)	Calculates the real valued spherical harmonic basis matrix.

spharpy.spherical.acn_to_nm(acn)

Calculate the order n and degree m from the linear coefficient index.

The linear index corresponds to the Ambisonics Channel Convention [1].

\[ \begin{align}\begin{aligned}n = \lfloor \sqrt{\mathrm{ACN} + 1} \rfloor - 1\\m = \mathrm{ACN} - n^2 -n\end{aligned}\end{align} \]

Parameters:

acn (ndarray, int) – Linear index

Returns:

• n (ndarray, int) – Spherical harmonic order

• m (ndarray, int) – Spherical harmonic degree

References

[1]

C. Nachbar, F. Zotter, E. Deleflie, and A. Sontacchi, “Ambix - A Suggested Ambisonics Format (revised by F. Zotter),” International Symposium on Ambisonics and Spherical Acoustics, vol. 3, pp. 1-11, 2011.

spharpy.spherical.aperture_vibrating_spherical_cap(n_max, rad_sphere, rad_cap)

Aperture function for a vibrating spherical cap.

The cap has radius \(r_c\) and is mounted in a rigid sphere with radius \(r_s\) [2], [3]

\[a_n (r_{s}, \alpha) = 4 \pi \begin{cases} \displaystyle \left(2n+1\right)\left[ P_{n-1} \left(\cos\alpha\right) - P_{n+1} \left(\cos\alpha\right) \right], & {n>0} \newline \displaystyle (1 - \cos\alpha)/2, & {n=0} \end{cases}\]

where \(\alpha = \arcsin \left(\frac{r_c}{r_s} \right)\) is the aperture angle.

Parameters:

• n_max (integer, ndarray) – Maximal spherical harmonic order

• rad_sphere (double, ndarray) – Radius of the sphere

• rad_cap (double) – Radius of the vibrating cap

Returns:

A – Aperture function in diagonal matrix form with shape \([(n_{max}+1)^2~\times~(n_{max}+1)^2]\)

Return type:

ndarray, float

References

[2]

5. 7. Williams, Fourier Acoustics. Academic Press, 1999.

[3]

B. Rafaely and D. Khaykin, “Optimal Model-Based Beamforming and Independent Steering for Spherical Loudspeaker Arrays,” IEEE Transactions on Audio, Speech, and Language Processing, vol. 19, no. 7, pp. 2234-2238, 2011

Notes

Eq. (3) in the second Ref. contains an error, here, the power of 2 on pi is omitted on the normalization term.

spharpy.spherical.change_channel_convention(data, current, target, axis)

Change the channel convention of spherical harmonics coefficients or basis functions.

Parameters:

• data (ndarray) – Data of which channel convention should be changed. Either spherical harmonics coefficients or bases functions.

• current (str) – Current channel convention. Valid conventions are “ACN” or “FuMa”.

• target (str) – Desired channel convention. Valid conventions are “ACN” or “FuMa”.

• axis (integer) – Axis along which the channel convention should be changed

Returns:

data – Data with changed channel convention

Return type:

ndarray

spharpy.spherical.fuma_to_nm(fuma)

Calculate the spherical harmonic order n and degree m for a linear coefficient index, according to the FuMa (Furse-Malham) Channel Ordering Convention.

See [4] for details.

FuMa = WXYZ | RSTUV | KLMNOPQ ACN = WYZX | VTRSU | QOMKLNP

Parameters:

fuma (integer, ndarray) – FuMa channel index

Returns:

• n (integer, ndarray) – Spherical harmonic order

• m (integer, ndarray) – Spherical harmonic degree

References

[4]

D. Malham, “Higher order Ambisonic systems” Space in Music – Music in Space (Mphil thesis). University of York. pp. 2–3., 2003.

spharpy.spherical.modal_strength(n_max, kr, arraytype='rigid')

Modal strength function for microphone arrays.

\[b(kr) = \begin{cases} \displaystyle 4\pi i^n j_n(kr), & \text{open} \newline \displaystyle 4\pi i^{(n-1)} \frac{1}{(kr)^2 h_n^\prime(kr)}, & \text{rigid} \newline \displaystyle 4\pi i^n (j_n(kr) - i j_n^\prime(kr)), & \text{cardioid} \end{cases}\]

This implementation uses the second order Hankel function, see [5] for an overview of the corresponding sign conventions.

References

[5]

V. Tourbabin and B. Rafaely, “On the Consistent Use of Space and Time Conventions in Array Processing,” vol. 101, pp. 470–473, 2015.

Parameters:

• n_max (int) – The spherical harmonic order

• kr (ndarray, float) – Wave number * radius

• arraytype (str) – Array configuration. Can be omnidirectional microphones mounted on a 'rigid' sphere or on a virtual 'open' sphere, or 'cardioid' microphones on an open sphere. Default is 'rigid'.

Returns:

B – Modal strength diagonal matrix

Return type:

ndarray, float

spharpy.spherical.n3d_to_maxn(acn)

Calculate the scaling factor which converts from N3D (normalized 3D) normalization to max N normalization. ACN must be less or equal to 15.

Parameters:

acn (integer, ndarray) – linear index

Returns:

maxN – Scaling factor which converts from N3D to max N

Return type:

float

spharpy.spherical.n3d_to_sn3d_norm(n)

Calculate the scaling factor which converts from N3D (normalized 3D) normalization to SN3D (Schmidt semi-normalized 3D) normalization.

Parameters:

n (integer, ndarray) – Spherical harmonic order

Returns:

sn3d – normalization factor which converts from N3D to SN3D

Return type:

float, ndarray

spharpy.spherical.nm_to_acn(n, m)

Calculate the linear index coefficient for a order n and degree m.

The linear index corresponds to the Ambisonics Channel Convention (ACN) [6].

\[\mathrm{ACN} = n^2 + n + m\]

References

[6]

C. Nachbar, F. Zotter, E. Deleflie, and A. Sontacchi, “Ambix - A Suggested Ambisonics Format (revised by F. Zotter),” International Symposium on Ambisonics and Spherical Acoustics, vol. 3, pp. 1-11, 2011.

Parameters:

• n (ndarray, int) – Spherical harmonic order

• m (ndarray, int) – Spherical harmonic degree

Returns:

acn – Linear index

Return type:

ndarray, int

spharpy.spherical.nm_to_fuma(n, m)

Calculate the FuMa channel index for a given spherical harmonic order n and degree m, according to the FuMa (Furse-Malham) Channel Ordering Convention.

See [7] for details.

Parameters:

• n (integer, ndarray) – Spherical harmonic order

• m (integer, ndarray) – Spherical harmonic degree

Returns:

fuma – FuMa channel index

Return type:

integer

References

[7]

D. Malham, “Higher order Ambisonic systems” Space in Music – Music in Space (Mphil thesis). University of York. pp. 2–3., 2003.

spharpy.spherical.radiation_from_sphere(n_max, rad_sphere, k, distance, density_medium=1.2, speed_of_sound=343.0)

Radiation function in SH for a vibrating spherical cap. Includes the radiation impedance and the propagation to a arbitrary distance from the sphere. The sign and phase conventions result in a positive pressure response for a positive cap velocity with the intensity vector pointing away from the source [8], [9].

TODO: This function does not have a test yet.

References

[8]

5. 7. Williams, Fourier Acoustics. Academic Press, 1999.

[9]

F. Zotter, A. Sontacchi, and R. Höldrich, “Modeling a spherical loudspeaker system as multipole source,” in Proceedings of the 33rd DAGA German Annual Conference on Acoustics, 2007, pp. 221-222.

Parameters:

• n_max (integer) – Maximal spherical harmonic order

• rad_sphere (float) – Radius of the sphere

• k (ndarray, float) – Wave number

• distance (float) – Radial distance from the center of the sphere

• density_medium (float) – Density of the medium surrounding the sphere. Default is 1.2. for air.

• speed_of_sound (float) – Speed of sound in m/s. Default is 343.0.

Returns:

R – Radiation function in diagonal matrix form with shape \([K \times (n_{max}+1)^2~\times~(n_{max}+1)^2]\)

Return type:

ndarray, float

spharpy.spherical.renormalize(data, channel_convention, current_norm, target_norm, axis)

Renormalize spherical harmonics coefficients or basis functions.

Parameters:

• data (ndarray) – Data which should be renormalized, either spherical harmonics coefficients or basis functions.

• channel_convention (str) – Channel convention of the data which should be renormalized. Valid conventions are “ACN” or “FuMa”.

• current_norm (str) – Current normalization. Valid normalizations are “N3D”, “NM”, “maxN”, “SN3D”, or “SNM”.

• target_norm (str) – Desired normalization. Valid normalizations are “N3D”, “NM” “maxN”, “SN3D”, or “SNM”.

• axis (integer) – Axis along which the renormalization should be applied. The axis contains the spherical harmonics coefficients and must hence have \(Q = (N+1)^2\) channels with \(N\) being the spherical harmonics order of data.

Returns:

data – Renormalized data

Return type:

ndarray

spharpy.spherical.sid(n_max)

Calculates the SID indices up to spherical harmonic order n_max. The SID indices were originally proposed by Daniel [10], more recently ACN indexing has been favored and is used in the AmbiX format [11].

Parameters:

n_max (int) – The maximum spherical harmonic order

Returns:

• sid_n (ndarray, int) – The SID indices for all orders

• sid_m (ndarray, int) – The SID indices for all degrees

References

[10]

J. Daniel, “Représentation de champs acoustiques, application à la transmission et à la reproduction de scènes sonores complexes dans un contexte multimédia,” Dissertation, l’Université Paris 6, Paris, 2001.

[11]

C. Nachbar, F. Zotter, E. Deleflie, and A. Sontacchi, “Ambix - A Suggested Ambisonics Format (revised by F. Zotter),” International Symposium on Ambisonics and Spherical Acoustics, vol. 3, pp. 1-11, 2011.

spharpy.spherical.sid_to_acn(n_max)

Convert from SID channel indexing to ACN indeces. Returns the indices to achieve a corresponding linear ACN indexing.

Parameters:

n_max (int) – The maximum spherical harmonic order.

Returns:

acn – The SID indices sorted according to a respective linear ACN indexing.

Return type:

ndarray, int

spharpy.spherical.sph_identity_matrix(n_max, matrix_type='n-nm')

Calculate a spherical harmonic identity matrix.

Parameters:

• n_max (int) – The spherical harmonic order.

• matrix_type (str, optional) – The type of identity matrix. Currently only 'n-nm' is implemented.

Returns:

identity_matrix – The spherical harmonic identity matrix.

Return type:

ndarray, int

Examples

The identity matrix can for example be used to decompress from order only vectors to a full order and degree representation.

>>> import spharpy
>>> import matplotlib.pyplot as plt
>>> n_max = 2
>>> E = spharpy.spherical.sph_identity_matrix(n_max, matrix_type='n-nm')
>>> a_n = [1, 2, 3]
>>> a_nm = E.T @ a_n
>>> a_nm
array([1, 2, 2, 2, 3, 3, 3, 3, 3])

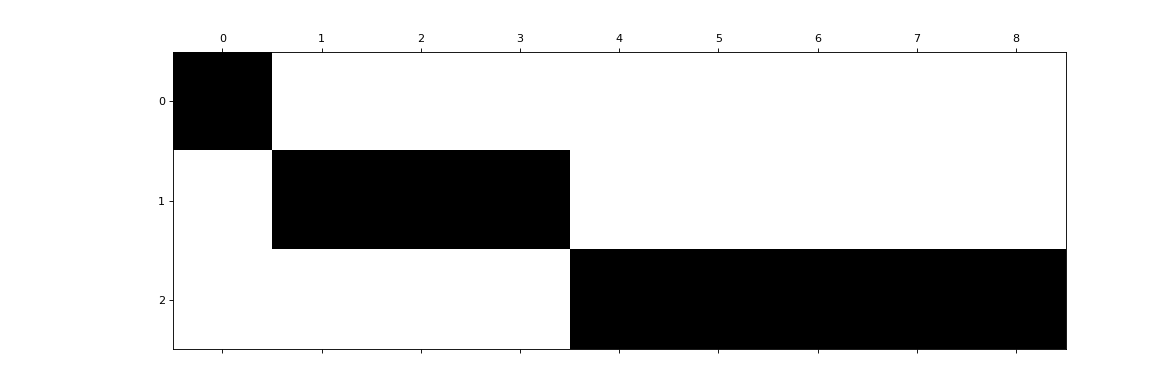

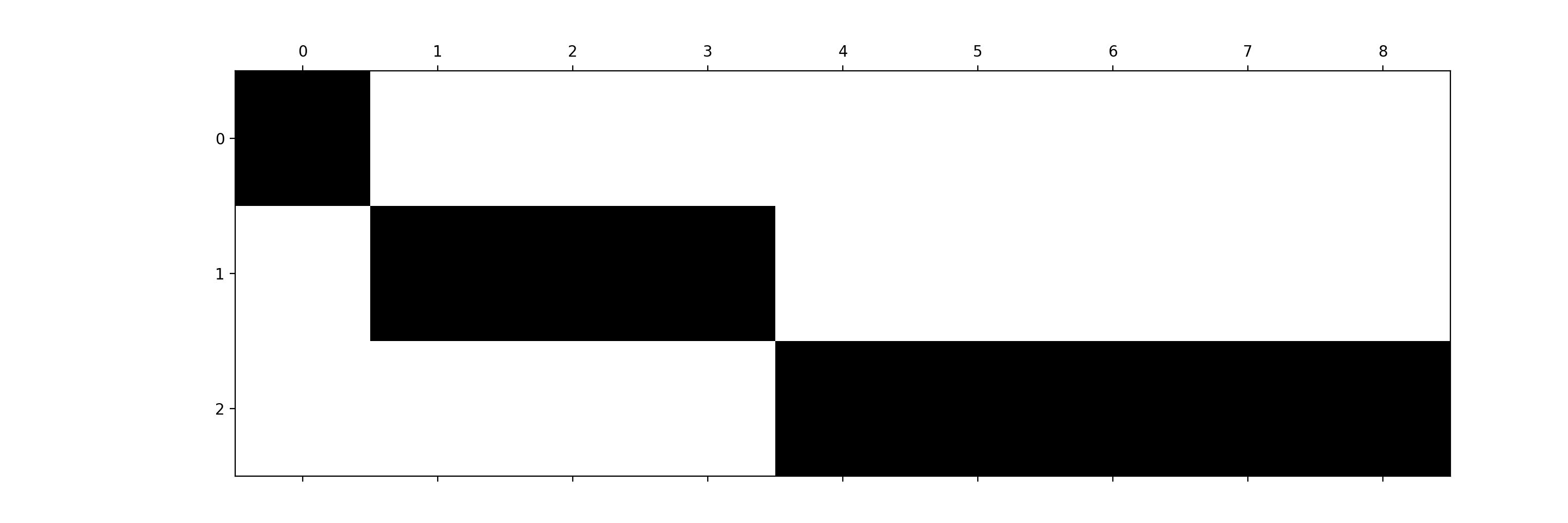

The matrix E in this case has the following form.

>>> import spharpy
>>> import matplotlib.pyplot as plt
>>> n_max = 2
>>> E = spharpy.spherical.sph_identity_matrix(n_max, matrix_type='n-nm')
>>> plt.matshow(E, cmap=plt.get_cmap('Greys'))
>>> plt.gca().set_aspect('equal')

(Source code, png, hires.png, pdf)

spharpy.spherical.spherical_harmonic_basis(n_max, coordinates, normalization='N3D', channel_convention='ACN', condon_shortley='auto')

Calculates the complex valued spherical harmonic basis matrix.

See [12] and [13] for details. See also spherical_harmonic_basis_real.

\[Y_n^m(\theta, \phi) = CS_m N_{nm} P_{nm}(cos(\theta)) e^{im\phi}\]

where:

• \(n\) is the degree

• \(m\) is the order

• \(P_{nm}\) is the associated Legendre function

• \(N_{nm}\) is the normalization term

• \(CS_m\) is the Condon-Shortley phase term

• \(\theta\) is the colatitude (angle from the positive z-axis)

• \(\phi\) is the azimuth (angle from the positive x-axis in the xy-plane), see coordinates

References

[12]

5. 7. Williams, Fourier Acoustics. Academic Press, 1999.

[13]

B. Rafaely, Fundamentals of Spherical Array Processing, vol. 8. Springer, 2015.

Parameters:

• n_max (integer) – Spherical harmonic order

• coordinates (pyfar.Coordinates, spharpy.SamplingSphere) – objects with sampling points for which the basis matrix is calculated

• normalization (str, optional) – Normalization convention, either 'N3D', 'NM', 'maxN', 'SN3D', or 'SNM'. (maxN is only supported up to 3rd order)

• channel_convention (str, optional) – Channel ordering convention, either 'ACN' or 'FuMa'. The default is 'ACN'. (FuMa is only supported up to 3rd order)

• condon_shortley (bool or str, optional) – Whether to include the Condon-Shortley phase term. If True or 'auto', Condon-Shortley is included, if False it is not included. The default is 'auto'.

Returns:

Y – Complex spherical harmonic basis matrix

Return type:

ndarray, complex

Examples

>>> import spharpy
>>> n_max = 2
>>> coordinates = spharpy.samplings.icosahedron()
>>> Y = spharpy.spherical.spherical_harmonic_basis(n_max, coordinates)

spharpy.spherical.spherical_harmonic_basis_gradient(n_max, coordinates, normalization='N3D', channel_convention='ACN', condon_shortley='auto')

Calculates the unit sphere gradients of the complex spherical harmonics.

This implementation avoids singularities at the poles using identities derived in [14].

The angular parts of the gradient are defined as

\[\nabla_{(\theta, \phi)} Y_n^m(\theta, \phi) = \frac{1}{\sin \theta} \frac{\partial Y_n^m(\theta, \phi)} {\partial \phi} \vec{e}_\phi + \frac{\partial Y_n^m(\theta, \theta)} {\partial \theta} \vec{e}_\theta .\]

References

[14]

J. Du, C. Chen, V. Lesur, and L. Wang, “Non-singular spherical harmonic expressions of geomagnetic vector and gradient tensor fields in the local north-oriented reference frame,” Geoscientific Model Development, vol. 8, no. 7, pp. 1979-1990, Jul. 2015.

Parameters:

• n_max (int) – Spherical harmonic order

• coordinates (pyfar.Coordinates, spharpy.SamplingSphere) – objects with sampling points for which the basis matrix is calculated

• normalization (str, optional) – Normalization convention, either 'N3D', 'NM', 'maxN', 'SN3D', or 'SNM'. (maxN is only supported up to 3rd order)

• channel_convention (str, optional) – Channel ordering convention, either 'acn' or 'fuma'. The default is 'acn'. (FuMa is only supported up to 3rd order)

• condon_shortley (bool or str, optional) – Whether to include the Condon-Shortley phase term. If True or 'auto', Condon-Shortley is included, if False it is not included. The default is 'auto'.

Returns:

• grad_theta (ndarray, complex) – Gradient with regard to the co-latitude angle.

• grad_azimuth (ndarray, complex) – Gradient with regard to the azimuth angle.

Examples

>>> import spharpy
>>> n_max = 2
>>> coordinates = spharpy.samplings.icosahedron()
>>> grad_theta, grad_phi = /
    spharpy.spherical.spherical_harmonic_basis_gradient(n_max, coordinates)

spharpy.spherical.spherical_harmonic_basis_gradient_real(n_max, coordinates, normalization='N3D', channel_convention='ACN', condon_shortley='auto')

Calculates the unit sphere gradients of the real valued spherical harmonics.

This implementation avoids singularities at the poles using identities derived in [15].

The angular parts of the gradient are defined as

\[\nabla_{(\theta, \phi)} Y_n^m(\theta, \phi) = \frac{1}{\sin \theta} \frac{\partial Y_n^m(\theta, \phi)} {\partial \phi} \vec{e}_\phi + \frac{\partial Y_n^m(\theta, \theta)} {\partial \theta} \vec{e}_\theta .\]

References

[15]

J. Du, C. Chen, V. Lesur, and L. Wang, “Non-singular spherical harmonic expressions of geomagnetic vector and gradient tensor fields in the local north-oriented reference frame,” Geoscientific Model Development, vol. 8, no. 7, pp. 1979-1990, Jul. 2015.

Parameters:

• n_max (int) – Spherical harmonic order

• coordinates (pyfar.Coordinates, spharpy.SamplingSphere) – objects with sampling points for which the basis matrix is calculated

• normalization (str, optional) – Normalization convention, either 'N3D', 'NM', 'maxN', 'SN3D', or 'SNM'. (maxN is only supported up to 3rd order)

• channel_convention (str, optional) – Channel ordering convention, either 'ACN' or 'FuMa'. The default is 'ACN'. (FuMa is only supported up to 3rd order)

• condon_shortley (bool or str, optional) – Whether to include the Condon-Shortley phase term. If True, Condon-Shortley is included, if False or 'auto', it is not included. The default is 'auto'.

Returns:

• grad_theta (ndarray, float) – Gradient with respect to the co-latitude angle.

• grad_phi (ndarray, float) – Gradient with respect to the azimuth angle.

spharpy.spherical.spherical_harmonic_basis_real(n_max, coordinates, normalization='N3D', channel_convention='ACN', condon_shortley='auto')

Calculates the real valued spherical harmonic basis matrix. See also spherical_harmonic_basis.

\[Y_n^m(\theta, \phi) = \sqrt{\frac{2n+1}{4\pi} \frac{(n-|m|)!}{(n+|m|)!}} P_n^{|m|}(\cos \theta) \begin{cases} \displaystyle \cos(|m|\phi), & \text{if $m \ge 0$} \newline \displaystyle \sin(|m|\phi) , & \text{if $m < 0$} \end{cases}\]

Parameters:

• n_max (int) – Spherical harmonic order

• coordinates (pyfar.Coordinates, spharpy.SamplingSphere) – objects with sampling points for which the basis matrix is calculated

• normalization (str, optional) – Normalization convention, either 'N3D', 'NM', 'maxN', 'SN3D', or 'SNM'. (maxN is only supported up to 3rd order)

• channel_convention (str, optional) – Channel ordering convention, either 'ACN' or 'FuMa'. The default is 'ACN'. (FuMa is only supported up to 3rd order)

• condon_shortley (bool or str, optional) – Whether to include the Condon-Shortley phase term. If True, Condon-Shortley is included, if False or 'auto', it is not included. The default is 'auto'.

Returns:

Y – Real valued spherical harmonic basis matrix.

Return type:

ndarray, float
